Here is video of complete 1 ton/h fish food pet feed line: https://www.youtube.com/watch?v=mVjcZ9WTgI8

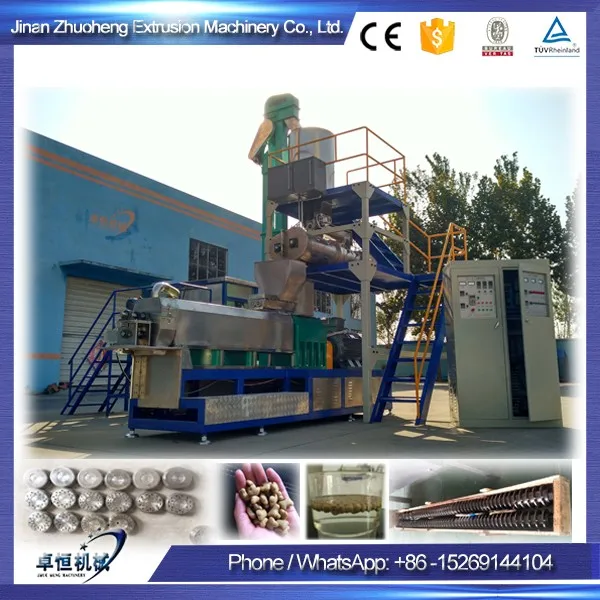

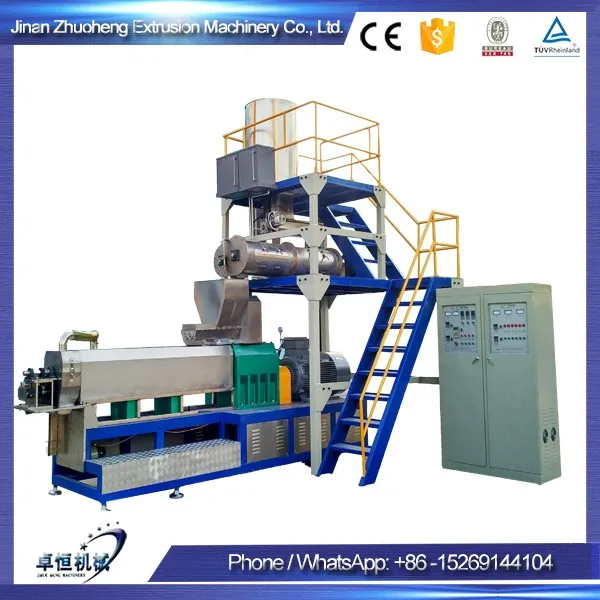

Extruder for producing pet treats dog chews food machines
Main Processes: Raw material mixing--extruding and shaping--drying--flavoring--cooling--packing
1. Mixering ( corn, rice , bone//chicken/fish meal etc)
2. Extrusion cooking extrusion shaping cutting feeds
3. Drying every single feed pellets completely dry
4. Flavoring line supply feeds with oil , healthy fishanimals digestive absorption vitamins, minerals.
5.Cooling & packing, our package machine can be various 0.5-50kg/bag, range packing weight cusromizabzle
|Model||Capacity||Installed Power||Main Motor|
|ZH65||120-150 kg/h||35 KW||22 kw|
|ZH70||250-300 kg/h||50 KW||35 kw|
|ZH85||400-500 kg/h||110 KW||75 kw|
|ZH95||1-1.2 ton/h||151 KW||110 kw|
|ZH115||1.5-2 ton/h||175 KW||132 kw|
|ZH125||2.5-3 ton/h||225 KW||160 kw|
|ZH135||3.5-4 ton/h||245 KW||185 kw|

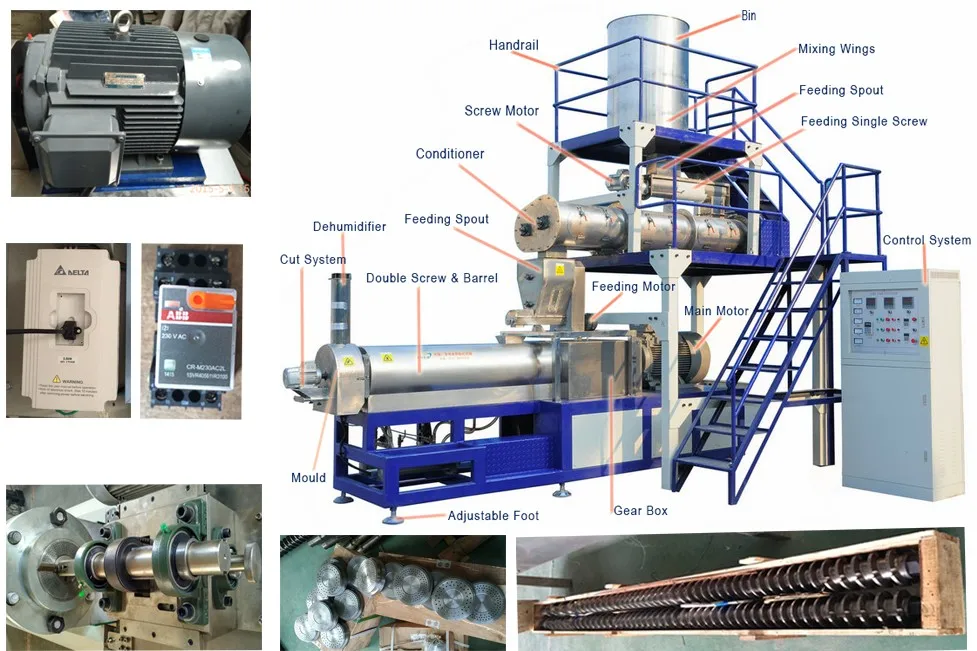

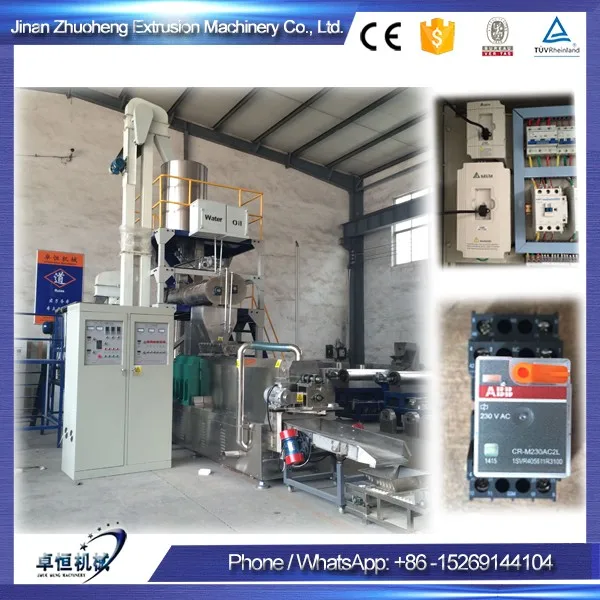

SIEMENS MOTOR, DELTA ABB ELETRONICSOf Extruder for producing pet treats dog food machines
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. good self-cleaning ability and do not need to discharge or clean the barrel and screw, when roasting or replacing of materials
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3.Speed-adjusted converter on feeding extrusion cutting
4.Delta inverters, ensure the extruder better running.
5. Gearbox has automatic lubrication, longer gear life.
6. Cutting knife fixed die head seat, rotary cut V-belt drive.

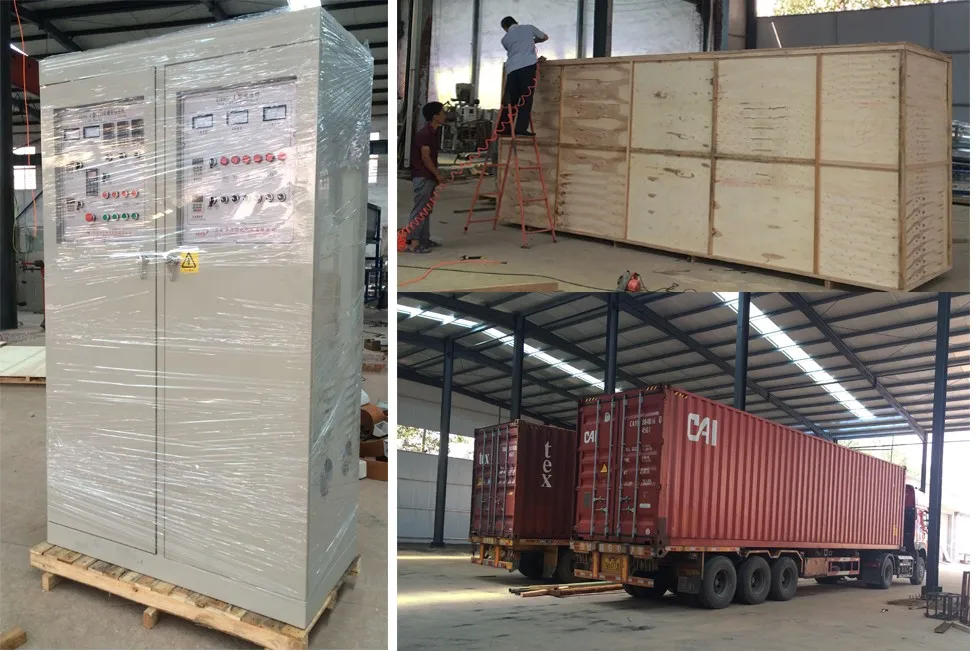

For U Cargo Arrived Safe, Focus Detail PackingOf Extruder for producing pet treats dog food machines
1.Clean all parts of equipments line with machinery oil
2.Inner package: stretch film
3. Fxied all machines on wooden boxes' frame
4. outside package: fumigation-free wooden case
Before Order Service
1. 24 hours Consulting service with mail, phone call, files video sharing, customizable proposal for every signle different customers' situations.
2. Visiting factory up to clients need, testing machines,etc.
3. Assist all specially design & formula for your final feed.
After Order Service

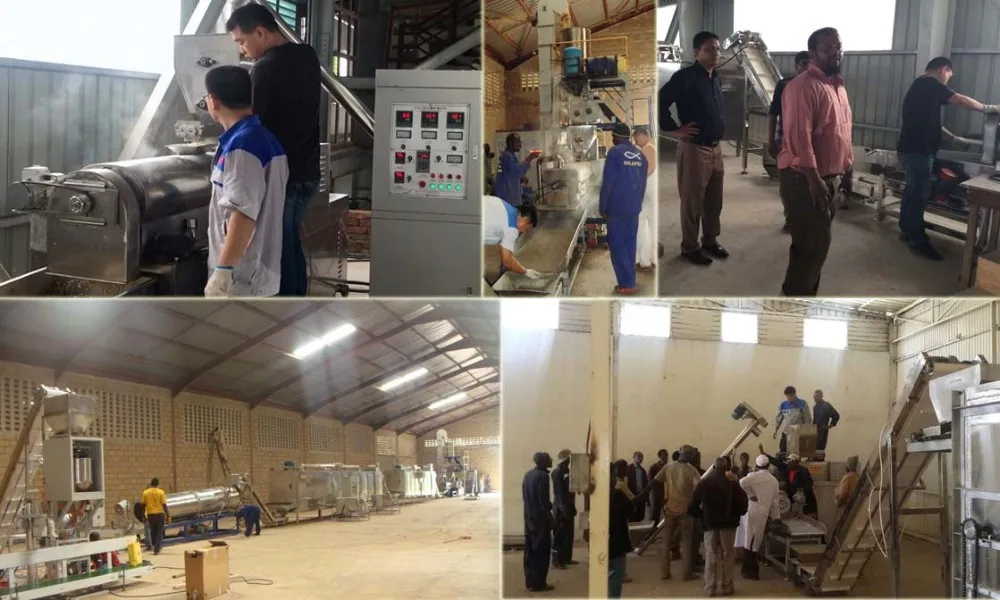

1. Assistance for machines line placement on yout factory.
2. Installtions machines line operations well.
3. Trainning your workers machinery maintance & operates.
4. Supplying you long term of tech formula design supports
Jinan Zhuoheng Extrusion Machinery Co., Ltd
Sunny Zhang Marketing Manager
Extruder for producing pet treats dog chews food machines is a food processing equipment developed, developed and produced on the basis of Jinan Joysun Machinery Co., Ltd. absorbing advanced foreign technologies. The technical performance and quality indicators of have reached the advanced level of similar international equipment. Extruder for producing pet treats dog chews food machines From ingredients, extrusion, filling, forming, baking, spraying to finished products can be completed at one time, can produce all kinds of puffed foods, fragrant rice cakes, sandwich rolls (cakes) and crackers, cereal porridge, nutritional powder, etc. food. can produce all kinds of puffed foods, fragrant rice cakes and other sandwich rolls (cakes) and crisp biscuits, cereal porridge, nutritional powder and other foods. Using potato starch, corn starch, and flour as the main raw materials, the unique extrusion molding process is used to produce popular puffed foods with different shapes on the market. 222222 has a reasonable design, a high degree of automation, a clear control of extrusion parameters, the host is equipped with high and low pressure screws, increases the scope of use of raw materials, reduces costs, and improves product quality. The main products are spirals. Shells, round tubes, square tubes, circles, cartoon shapes, sports shapes, etc., produce products that are lifelike, crisp and crisp after being fried.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integration R&D, manufacturing, sales, and after-sales services.
