Product Description
Our Factory
Our factory occupa 30000 square meters. among of 20000 square meters modernization workshop, 4000 square meters for office . the rest are for workers dormitory and for garden.Finished Machines In Factory
this is our finished machines show room , our processing workshop and finished product workshop are by separately .
Industrial Animal Poultry Chicken Feed Pelletiser Machine :
1.This Mills widely applied product with mature technology .
2.The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3.Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4.The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5.Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6.International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7.Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
Industrial Animal Poultry Chicken Feed Pelletiser Machine main data:
| SZLH32 | SZLH35 | SZLH400 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 | ||
| 1 | Capacity | 2-5T/H | 2-8T/H | 2-10T/H | 3-12T/H | 4-20T/H | 6-22T/H | 10-30T/H | 12-35T/H |
| 2 | Main power | 37kw | 55kw | 75/90kw | 110kw | 132/160kw | 160/180/200kw | 220/250kw | 280/315kw |
| 3 | Power of feeder | 0.55kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
| 4 | Power of conditioner | 2.2kw | 3kw | 3kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
| 5 | Inner diameter of die | 320mm | 350mm | 400mm | 420mm | 508mm | 558mm | 678mm | 768mm |
| 6 | Die speed | 305RPM | 336RPM | 307RPM | 287RPM | 287RPM | 287RPM | 287RPM | 287RPM |
| 7 | Pellets size | Diameter 2,3,4,4.5,5,6,8,10mm | |||||||
| 8 | Rollers number | 2 pcs | |||||||
| 9 | Roller OD | 140mm | 165mm | 190mm | 206mm | 222mm | 240mm | 256mm | 280mm |
| 10 | Noise | ≤86dB（A） | ≤90dB（A） | ||||||
| 11 | Steam consumption | ≥0.3t/h | ≥0.3t/h | ≥0.4t/h | ≥0.5t/h | ≥1t/h | ≥1t/h | ≥1.5t/h | ≥1.5t/h |
| 12 | Steam temperature | 130-150℃ | |||||||
Industrial Animal Poultry Chicken Feed Pelletiser Machine
this SZLH400 feed pellet making machine is we export to Russia
Detailed Images
Ring Die Lifting Device
easy hoist the ring die when replace the new ring die mould , no need extra use the forklift .
Ring Die Device
ring die , main parts of the machine, use to press the animal feed pellets. the materials can be by alloy steel or SUS 304 stainless steel .
Oil Cooling Device
oil cooling device, cooling down the main gear box lubrication oil , so that keep the lubrication oil temperature not too high . to protect the main body gear .
Automatic Lubrication Machine
automatic lubrication machine use to automatic lubrication the bearings , without stop running the machine .
easy operation, good protectiong bearings using life .
Spare Parts
Ring Die
change different ring die size can get different size final feed . range 1.2-12mm
Roller Set
main parts of ring die pellet mill, use to press feed pellets
Roller shell
roller shell, use to press the animal feed
Packing & Delivery
Industrial Animal Poultry Chicken Feed Pelletiser Machine
Machine self use plastic film wrap. then loading by container
then loading by container
Successfull Case
5T/H Poultry Feed Line In Bangladesh
use SZLH420 ring die feed mill , whole line by manual dosing system

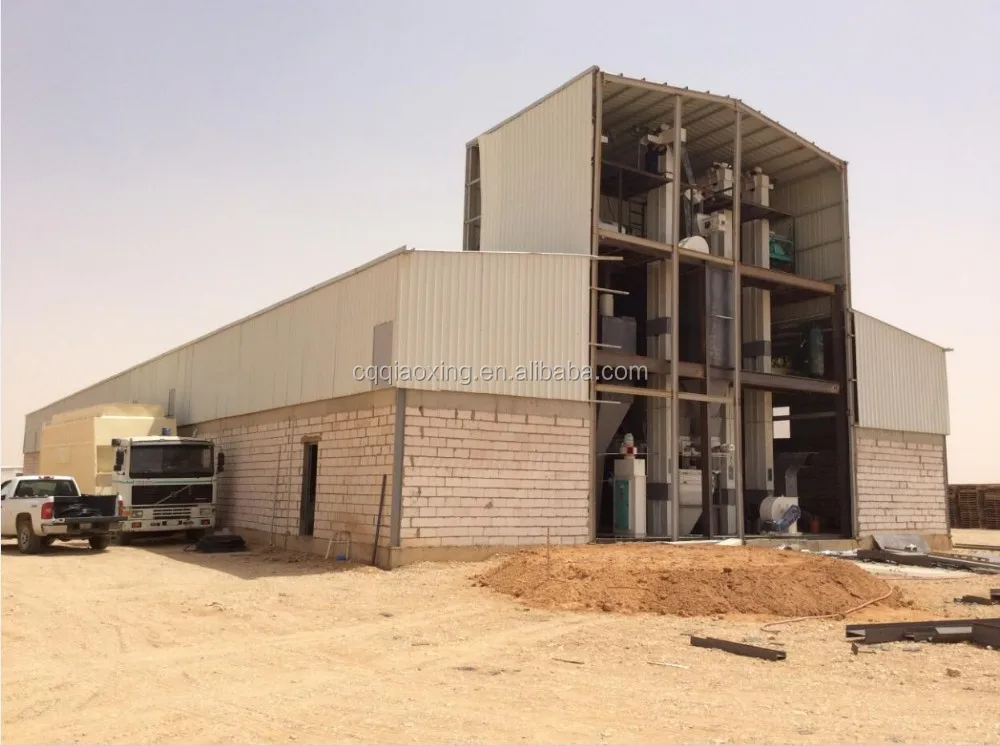

5T/H Full Automatic Feed Line In Saudi Arabia
whole line adopt computer control system, full automatic dosing raw materials
Powder Feed Line In Saudi Arabia
make cattle and livestock feed, powder animal feed line .
10T/H Poultry Feed Line In Shandong, China
full automatic line make poultry,pig feed
Fish ,Shrimp Feed Line In Guangzhou Province
whole line use to make fish and shrimp feed . adopt full automatic dosing system
4-5T/H Fish Feed Line in Philippines
whole line adopt SZLH40 ring die pellet mill, use to make fish feed .
SZLH420 Feed Line In Australian
whole line use to make pet , poultry, fish feed . the plant located in Tasmania island.
Animal Feed Line In Guatemala
whole line the main pellet mill use CPM brand.cooler, sifter ,magnetic tube etc we matched
20T/H Poultry Feed Line
Want Know More case, pls contact with use freely as below :
Contact InformationTo know more Industrial Animal Poultry Chicken Feed Pelletiser Machine , pls contact with us freely.
Contact Person: Mrs Winni
E-mail: info(at)astarmachine.com
Cell/WhatsAPP: 0086-15178920906 0086-13721419972
Skype: winni.duan
