Product Details

performance stable animal feed crusher and mixer hammer mill/animal feed poultry feed milling machine

Place of Origin Original performance stable animal feed crusher and mixer hammer mill/animal feed poultry feed milli
Brand Name Xinhengfu
Certification CE ISO
Model Number SFSP968*40feed hammer mill
Min.Order Quantity One set performance stable animal feed crusher and mixer hammer mill/animal feed poultry feed millin
Price Negotiable
Packaging Details 2200*1800*1900mm
Delivery Time Within 5 working days
Payment Terms paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
Supply Ability 164

Product Features

performance stable animal feed crusher and mixer hammer mill/animal feed poultry feed milling machine

Product Introduction of feed hammer mill

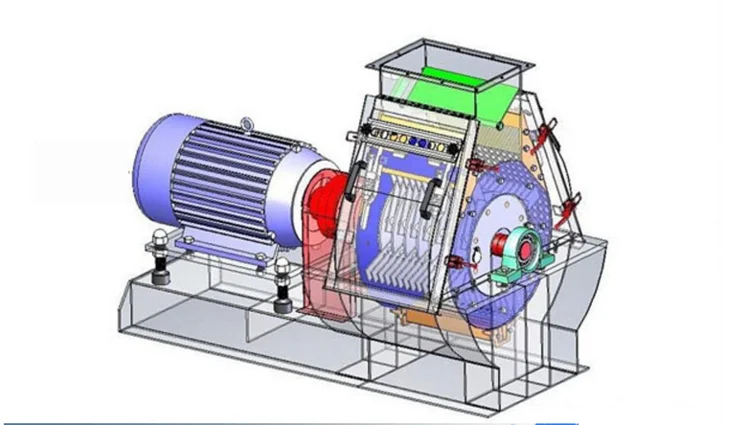

The feed hammer mill is composed of hopper, ball type magnetic separation machine, guide mechanism, upper casing, operation gate, rotor, engine base and shock absorber. It can be used grinding corn, wheat, soybean, sorghum, also grinding forage and medicine raw materials. And it is widely suitable for large and medium feed mills and large scale breeding factory and pharmaceutical factory.
Working Principles of feed hammer mill

This feed hammer mill process is divided into two parts:
Hammer Blow: There are several crushing methods: crushing, grinding, smashing and Shear broke. Our machine is smashing, raw materials in grinding chamber are crushed small granular with hammer fast rotate and strike.
Mesh Filter. Some of crushed small granular are according with standard and through screen, and the rest of materials need hitting again to meet standard.
Structure Features of feed hammer mill

Water drop grinding chamber design, it can remove circulation to get secondary crushing and improve grinding uniformity and capacity.
feed hammer mill rotor by checking, equipment operation less vibration, less noise, more stable.
Adopt direct drive, new bibby coupling, avoid bearing heating.
Import advanced bearing, long life, and stable run.
Can use impeller feeding, variable frequency feeding, screw conveyor, stepless feeding and various feeding system.
Parameters of feed hammer mill

ModelSFSP56*36SFSP56*40SFSP708*40SFSP968*40
Rotor diameter(mm)560560708968
Width of grinding chamber(mm)360400400400
Rotate speed(r/min)2940295029701480

Hammer quantity

40408044
Capacity(t/h)1-32-53-86-10
Power(kw)22375590-110

performance stable animal feed crusher and mixer hammer mill/animal feed poultry feed milling machine is now a general-purpose model DL3000-100 single screw, is mainly used for the production of a variety of pasta, fried foods, rice noodles, pasta, pasta and other products, stable output, simple and convenient operation. 3000 is the length of the screw and 100 is the diameter of the screw.
performance stable animal feed crusher and mixer hammer mill/animal feed poultry feed milling machine consists of feeding system, extrusion system, rotary cutting system, heating system, transmission system and control system. The use of advanced screw extrusion technology, the use of high temperature and high pressure material curing and expansion molding, one-time completion. The host adopts variable frequency speed regulation to ensure the stability of the production process. Product color, variety, appearance, natural and realistic, delicate texture, raw materials are widely used of .
Jinan Joysun Machinery Co., Ltd. is a high-tech enterprise integrating science, industry and trade. is dedicated to the development, development, production and sales of expanded snack food equipment, tissue protein equipment, pasta/pimento equipment, pet food equipment and experimental extruders.
Nowadays, Jinan Joysun Machinery Co., Ltd. have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.
